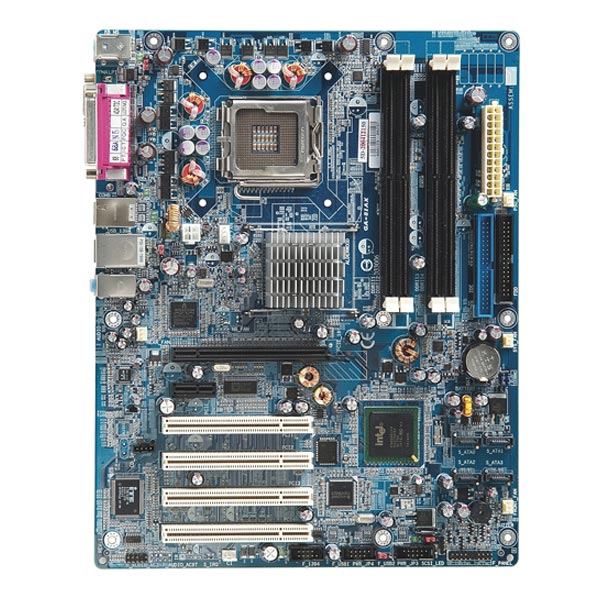

GIGABYTE (775, FSB800) GA-8IAX I925X / LAN GbE/PCI-E 16x/PCI-X/PCI-sata raid 0.1

Розница: нет в наличии

Processor Supported:
Single IntelR Pentium Prescott LGA 775 processor
Supports 800MHz/Socket 775

Chipset Description:
IntelR Alderwood 925X MCH
IntelR ICH6R

System Memory:
4 x Dual Channel Un-Buffered DDRII 400/533MHz Module
Max. memory capacity up to 4 GB
Support 128MB, 256MB, 512MB, and 1GB memory
Supports ECC

System BIOS:
AWARD BIOS with 4Mb flash RAM

Support RAID Function:
IntelRICH6R supports SATA RAID 0,1

Integrated Network:
BroadcomR 5751 GbE

Integrated Video Controller:
PCI-E x16 Graphics slot from MCH

Integrated Super I/O Controller:
ITERIT8712F

Expansion Slot:
4 x PCI 32-Bit/33MHz Slots
1 PCI-E x16 slot
1 PCI-E x 1 slot

Board Dimension:
ATX Form Factor
12"W x 9.6"D

I/O Connectors:
2 x PS/2
1 x Parallel Port
1 x IEEE 1394
4 x USB
1 x COM
1 x Audio
1 x LAN RJ45

Integrated Audio Controller:
RealtekR ALC260L support Intel HDA
